Pipeline Overview

Understand what we’re running on your warehouse

This page is intended to give you a high level overview of the pipeline Statsig Warehouse Native will run on your warehouse.

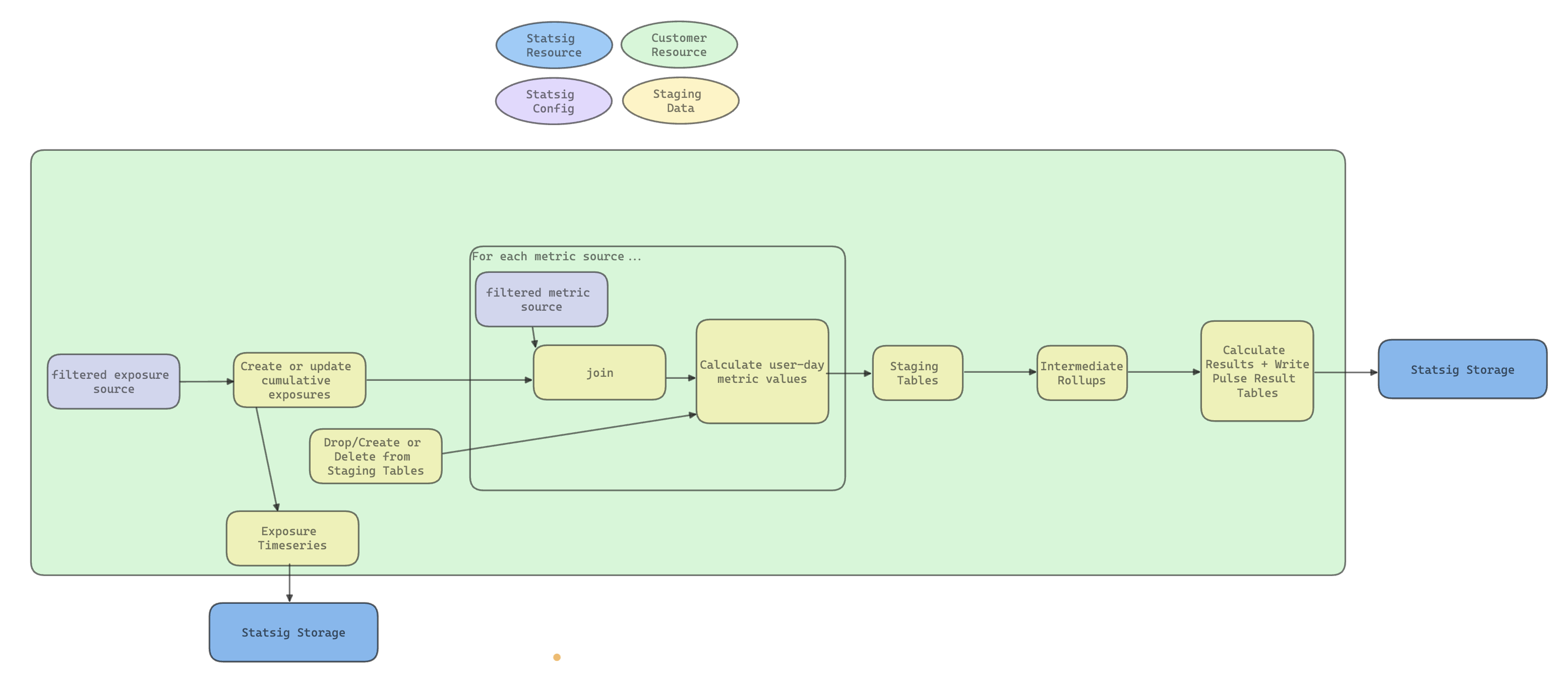

Main Steps

The main steps in the pipeline are:

• Identifying users’ first exposures
• Annotating Metric Sources with exposure data
• Creating metric-user-day level staging data
• Running intermediate rollups for better performance
• Calculating group-level summary Statistics

Types of DAGs

Statsig lets you run your pipeline in a few different ways:

• A Full Refresh totally restates the experiment’s data and calculates it from scratch. This is useful for starting an experiment, or if underlying data has changed
• An Incremental Refresh appends new data to your experiment data. This reduces the cost of running scheduled updates to your results
• A Metric refresh allows you to update a specific metric in case you changed a definition, or want to add new metrics to your analysis

Artifacts and Entity Relationships

The following tables will be generated and stored in your warehouse per-experiment. You have full access to these data sources for your own analysis, models, or visualizations. For experiments, experiment_id will be the name of the experiment; for Feature Gates, experiment_id will be the name of the gate along with the specific rule ID (e.g. chatbot_llm_model_switch_31e9jwlgO1bSSznKntb2gp_exposures_summary)

This is not an exhaustive list, but includes most of the core result/staging tables that you might be interested in using for your own analysis. Note - These are internal tables and will change as the product evolves. Changes will be documented here.

Table	Description	Notes
first_exposures_<experiment_id>	Deduplicated and stitched (for experiments with ID resolution) first exposure events	Useful for ad-hoc analysis
exposures_summary_<experiment_id>	Timeseries of exposures per group for display in Pulse
unit_day_metrics_<experiment_id>	User-day level metric aggregations table	Useful for ad-hoc analysis
unit_covariate_metrics_<experiment_id>	User-level pre-experiment aggregations for regression adjustment/CUPED
funnel_events_<experiment_id>	Staging table for running funnel analysis
percentile_values_<experiment_id>	Staging table for running percentile analysis
distinct_values_<experiment_id>	Staging table for running count distinct analysis
windowed_metrics_<experiment_id>	Staging table for generating running totals when restating Pulse
ratio_aggregations_<experiment_id>	Staging table for generating running totals when restating Pulse
results_<rollup>_<experiment_id>	Outputs of Statistical Analysis for different rollups (e.g. daily, days-since-exposure, cumulative, 7-day). Exported to Statsig	Pulse inputs - useful for replicating Statistical analysis
ratio_results_<rollup>_<experiment_id>	Outputs of Statistical Analysis for ratio metrics in different rollups (e.g. daily, days-since-exposure, cumulative, 7-day). Exported to Statsig	Pulse inputs - useful for replicating Statistical analysis

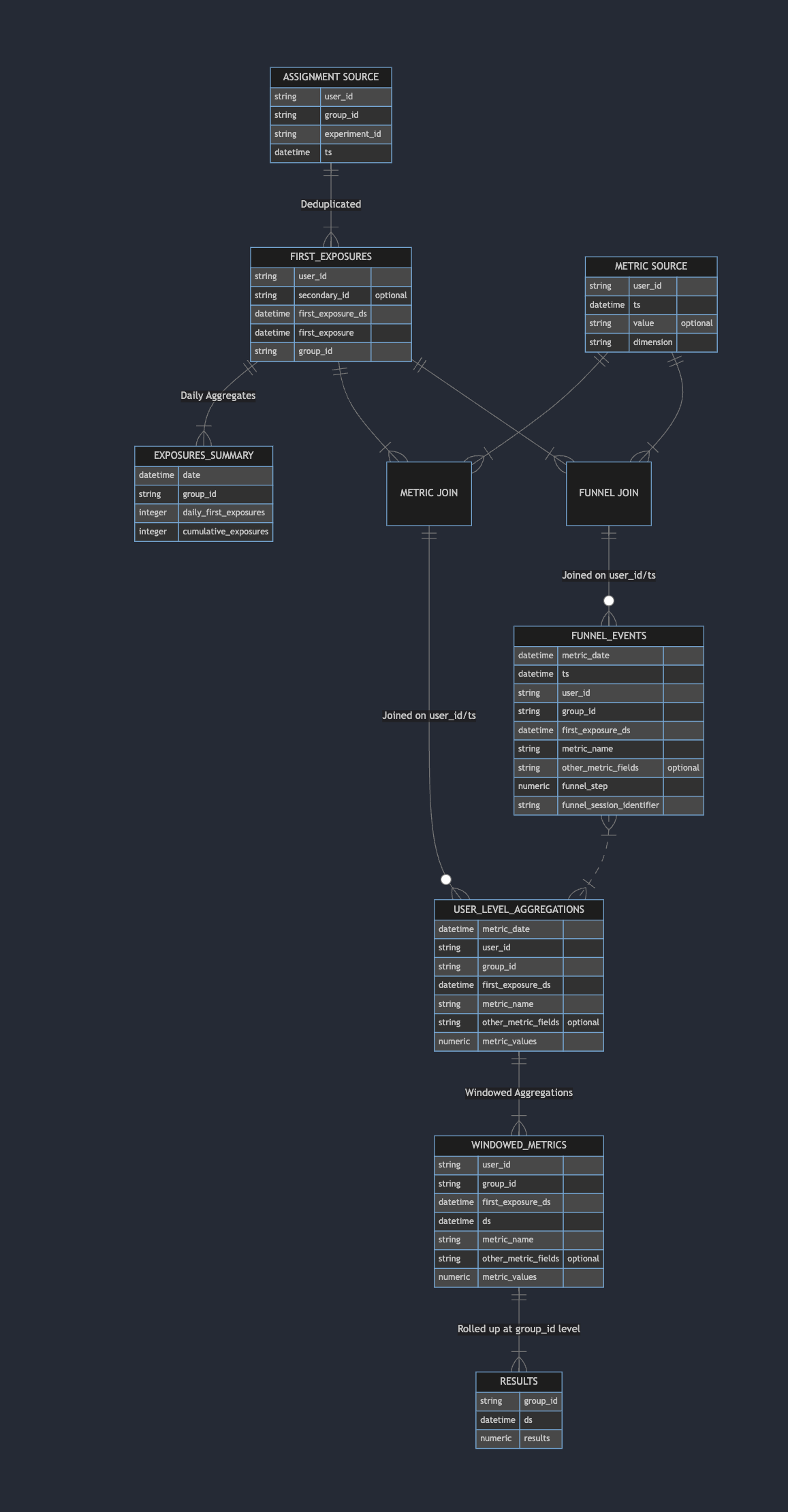

The high level relationships/contents of these tables are represented below - refer to the Main Steps image below for scheduling details.

Other Jobs

Alongside and inside this main flow, Statsig will also:

• Run Health Checks and a Summary View for exposures
• Calculate top dimensions for dimensional metrics
• Calculate funnel steps
• Run CUPED and Winsorization procedures during the group-level summaries to reduce variance and outlier influence
• Calculate inputs to the Delta Method to avoid bias on Ratio and Mean metrics

Statsig generates experiment-level tables - this makes it easy to do your own follow-up analyses on specific experiments.

Visibility

Clicking into the history icon on your pulse results, you’ll be able to see the Jobs and IDs we ran for each pulse reload, alongside relevant information on compute time and cost.

This will also be fully transparent from your own Warehouse’s history and usage management, but having the costs in console is helpful knowledge for the cross-functional experimentation teams running the analysis.

Exposure Export Table

Statsig dedupes and records production exposures into the forwarded exposures table configured in your warehouse Data Connection. This table contains each user’s first exposure to an experiment. For feature gates, we dedupe and record exposures for partial rollouts (e.g. 5% or 50% rollouts - but not 0% or 100% rollouts).

Column Name	Data Type	Description
experiment_id	string	The identifier for the gate/experiment
group_id	string	groupID for experiments; ruleID+Pass/Fail for gates
group_name	string	Name of the experiment group (e.g. Control vs Test)
user_id	string	The ID passed in as the Statsig userID
stable_id	string	Statsig Client SDK managed stable device identifier
[your custom ids]	string	One column for every custom unitID you use on Statsig
timestamp	timestamp	Timestamp of the first exposure
user_dimensions	object	Warehouse specific object with all the user dimensions

user_dimensions is populated in the daily deduplicated export. Fast-forwarded exposure rows can omit some fields in this object until the next daily load.

Common Fields in user_dimensions

user_dimensions contains user attributes captured alongside the first exposure. The exact shape can vary by SDK and project configuration, but these are some of the most common fields you may see:

Field	Description	Notes
os	Normalized operating system name	Canonical OS field on the exposure side.
os_version	Operating system version	Derived from SDK metadata or user agent parsing.
browser_name	Browser name	Derived from SDK metadata or user agent parsing.
browser_version	Browser version	Derived from SDK metadata or user agent parsing.
device_model	Device model	Forwarded or inferred when available.
ip	IP address	Present when available from the SDK or request context.
country	Country	Derived from request context or IP lookup.
locale	Locale	Forwarded or inferred when available.
language	Language	Forwarded or inferred when available.
appVersion	Application version	Forwarded when present on the SDK user object.
sessionID	Session identifier	Forwarded when present on the SDK user object.
appIdentifier	Application identifier	Forwarded when present on the SDK user object.

Additional non-null fields from the SDK user object may also appear in user_dimensions. Custom IDs are typically exported as dedicated top-level columns in the exposure table rather than being queried from this object.

Input fields such as deviceOS and systemName are used to derive the exported os field. If you want to analyze operating system on forwarded exposures, query user_dimensions.os.

Event Export Table

If you log custom events through a Statsig SDK, Statsig also forwards those events into a configurable table in your warehouse. This is the table used when Warehouse Native customers rely on Statsig SDK logging for outcome events.

• Use user_object for user fields associated with the event.
• Use statsig_metadata for SDK and exposure-processing metadata.
• Use company_metadata for the event metadata payload you logged.

Column Name	Data Type	Description
user_id	string	The ID passed in as the Statsig userID
stable_id	string	Statsig Client SDK managed stable device identifier
[your custom ids]	string	One column for every custom unitID you use on Statsig
timestamp	timestamp	Event timestamp
event_name	string	Name of the logged custom event
event_value	string	Optional event value
user_object	object	Warehouse specific object containing user fields associated with the event
statsig_metadata	object	Warehouse specific object containing Statsig SDK and exposure metadata
company_metadata	object	Event metadata payload logged with the event

Common Fields in user_object

user_object contains user fields associated with the event. It often includes the same common fields as user_dimensions, plus any additional non-null fields sent on the SDK user object.

Field	Description	Notes
os	Normalized operating system name	Canonical OS field on the event-side user object.
os_version	Operating system version	Derived from SDK metadata or user agent parsing.
browser_name	Browser name	Derived from SDK metadata or user agent parsing.
browser_version	Browser version	Derived from SDK metadata or user agent parsing.
device_model	Device model	Derived from deviceModel when provided.
ip	IP address	Present when available from the SDK or request context.
city	City	Added when geographic inference is available.
state	State or region	Added when geographic inference is available.
country	Country	Derived from request context or IP lookup.
locale	Locale	Forwarded or inferred when available.
language	Language	Forwarded or inferred when available.
appVersion	Application version	Forwarded when present on the SDK user object.
sessionID	Session identifier	Forwarded when present on the SDK user object.
appIdentifier	Application identifier	Forwarded when present on the SDK user object.

Common Fields in statsig_metadata

statsig_metadata contains SDK-level and exposure-processing metadata associated with the event. These are some of the most common customer-facing fields:

Field	Description	Notes
deviceType	High-level device category	Derived from the normalized OS, for example Desktop or Mobile.
targetAppID	Target app identifier	SDK target app metadata.
statsigTier	Statsig environment tier	For example prod or staging.
keyEnvironment	SDK key environment	Environment associated with the SDK key.
keyID	SDK key identifier	Useful for debugging ingestion and environment issues.
samplingRate	Event sampling rate	Present when the event is sampled.
is_bot	Bot classification	Set when Statsig classifies the event as bot traffic.
billing_type	Exposure billing classification	Common on exposure-related events.
groupID	Experiment group identifier	Common on exposure-related events.
ruleID	Rule identifier	Common on exposure-related events.
continuous_rollout_id	Continuous rollout identifier	Present for continuous rollout exposures.
configExposureType	Exposure config type	For example dynamic_config or experiment.
isSwitchback	Switchback flag	Present when the exposure is associated with a switchback experiment.
is_autotune	Autotune flag	Present when the exposure is associated with an autotune experiment.

Other SDK debugging and exposure-processing metadata may also appear in statsig_metadata.

What Goes in company_metadata

company_metadata stores the metadata payload logged with the event. This object does not have a fixed schema and will vary based on the event and your SDK usage. Most event-specific business context, such as price, currency, category, plan, screen, route, or nested objects like cart, items, and context, will appear here.
